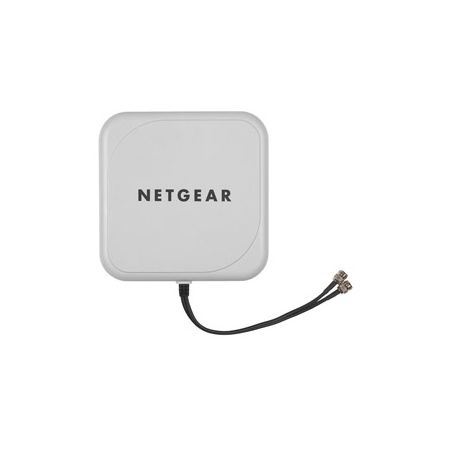

Netgear ProSafe ANT224D10 Directional Antenna Item # 136714
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
136714
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
NETGEAR’s ProSAFE line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. For outdoor bridging applications, the ANT224D10 enables two wireless N access points with antenna take-offs to create a high-speed wireless bridge between them with two streams of data. By pointing two ANT224D10 antennas at each other, they can connect two wireless access points over 10,000 meters apart. Utilizing the advantages of wireless N, the ANT224D10 provides for wireless bridging at speeds many times faster than those based on 802.11g technology. Designed for safety, the ANT224D10 includes equipment to neutralize lighting strikes and keep your access points operational. With wall mounting and pole mounting options, the ANT224D10 can be mounted in a variety of locations for maximum performance.
Product Details
| Item # | 136714 |
| OfficeMax # | 24059082 |
| Manufacturer # | BH4871 |
| Maximum Antenna Range | 6.5 Mile |
| height | 1.6 in. |
| Additional Information | Wifi: 802.11 b/g/n (draft); Cable Length: 30 cm; For Indoor & Outdoor environment; Beamwidth:Horizontal 30°; Vertical 30° |
| quantity | 2 |
| Directivity | Directional |
| Product Line | ProSafe |
| width | 9.4 in. |
| depth | 9.4 in. |
| Product Name | ProSafe ANT224D10 Directional Antenna |
| Antenna Gain | 10 dBi |
| manufacturer | Netgear, Inc |
| Compatibility | ProSafe Wireless Access Points:WAG102; WG102; WG103; WG302; WNAP210; WNDAP330 |
| Application/Usage | Television |
| Polarization | Linear Vertical |
| brand name | NETGEAR |
| Application | Indoor, outdoor |
| connector type | RP-SMA |
| model name | ANT224D10 |
| Frequency Range | 2.4 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
High speed. Big range. Serious durability.
Optimal for building-to-building deployments outdoors or floor-to-floor connectivity indoors, boost your RF signal in a specific direction for long range point-to-point connections with ProSAFE® 10 DBI Directional antenna at wireless 802.11n speeds.
Features
-
Optimize WLAN Range and Power with the ProSAFE® 10 dBi 2x2 Indoor/Outdoor Directional Antenna
-
The ANT224D10 2.4 GHz antenna provides extended range connectivity for point-topoint wireless bridges at wireless 802.11n speeds. With a maximum range of 8.5 KM, the ANT224D10 enables high speed connections for building-to-building deployments. Additionally, this antenna can be used indoors for floor-to-floor connectivity or to provide a narrow beam of coverage. Due to the multiple streams of traffic in the 802.11n specification, this antenna requires two antenna cables, which are available in a variety of lengths. It includes several mounting options and comes with wall/pole mounting hardware. Cables are sold separately.
-
NETGEAR ProSafe® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.
